臺達變頻器C200制動電阻選用一覽表
以下數據來源于臺達變頻器C200官網
VFD007CB43A-20
| 變頻器輸入電壓 | 適用電機 | 125%制動轉矩 10%ED | |||
| HP | KW | 制動電阻型號 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | |
| 230V-單相 | 0.5 | 0.4 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 |
| 1.0 | 0.8 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | |
| 2.0 | 1.5 | BR200W091*1 | RXLG-200W91RJ | 215*40*20 | |
| 3.0 | 2.2 | BR300W070*1 | RXLG-300W70RJ | 215*60*30 | |
| 230V-三相 | 0.5 | 0.4 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 |
| 1.0 | 0.8 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | |
| 2.0 | 1.5 | BR200W091*1 | RXLG-200W91RJ | 215*40*20 | |
| 3.0 | 2.2 | BR300W070*1 | RXLG-300W70RJ | 215*60*30 | |
| 5.0 | 3.7 | BR400W040*1 | RXLG-400W40RJ | 265*60*30 | |
| 460V | 1.0 | 0.8 | BR080W750*1 | RXLG-80W750RJ | 110*40*20 |
| 2.0 | 1.5 | BR200W360*1 | RXLG-200W360RJ | 215*40*20 | |
| 3.0 | 2.2 | BR300W250*1 | RXLG-300W250RJ | 215*60*30 | |
| 5.0 | 3.7 | BR400W150*1 | RXLG-400W150RJ | 265*60*30 | |
| 5.5 | 4.0 | BR1K0W075*1 | RXLG-1000W75RJ | 385*60*30 | |
| 7.5 | 5.5 | BR1K0W075*1 | RXLG-1000W75RJ | 385*60*30 | |
| 10.0 | 7.5 | BR1K0W075*1 | RXLG-1000W75RJ | 385*60*30 | |
臺達變頻器CT2000制動電阻選用一覽表
以下數據來源于臺達變頻器CT2000官網
VFD750CT43F00A6
| 變頻器輸入電壓 | 適用電機 | 125%制動轉矩 10%ED | |||||
| HP | KW | 制動單元 | 制動電阻型號 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | ||
| 460V | 15.0 | 11.0 | 空白 | BR1K5W043*1 | RXLG-1500W43RJ | 400*50*107 | |
| 20.0 | 15.0 | 空白 | BR1K0W016*2 | 2串聯 | RXLG-2000W32RJ | 450*50*107 | |
| 25.0 | 18.5 | 空白 | BR1K0W016*2 | 2串聯 | RXLG-2000W32RJ | 450*50*107 | |
| 30.0 | 22.0 | 空白 | BR1K5W013*2 | 2串聯 | RXLG-3000W26RJ | 550*50*107 | |
| 40.0 | 30.0 | 空白 | BR1K0W016*4 | 2并2串聯 | RXLG-4000W16RJ | 650*50*107 | |
| 50.0 | 37.0 | 4045*1 | BR1K2W015*4 | 2并2串聯 | RXLG-4800W15RJ | ||
| 60.0 | 45.0 | 4045*1 | BR1K5W013*4 | 2并2串聯 | RXLG-6000W13RJ | 850*50*107 | |
| 75.0 | 55.0 | 4030*2 | BR1K0W5P1*8 | 2并4串聯 | RXLG-8000W10.2RJ | 900*50*107 | |
| 100.0 | 75.0 | 4045*2 | BR1K2W015*8 | 2并4串聯 | RXLG-9600W7.5RJ | ||
| 125.0 | 90.0 | 4045*2 | BR1K5W013*8 | 2并4串聯 | RXLG-12000W6.5RJ | ||
臺達變頻器MS300制動電阻選用一覽表
以下數據來源于臺達變頻器MS300官網
VFD4A8MS23ANSAA
| 變頻器輸入電壓 | 型號 | 適用電機 | 125%制動轉矩 10%ED | ||||
| HP | KW | 制動電阻型號 | 臺旺佳料號 | 串聯個數 | 尺寸：長*寬*高(L*B*H)mm | ||
| 115V-單相 | VFD1A6MS11XNSXX | 0.25 | 0.2 | BR080W750*1 | RXLG-80W750RJ | 110*40*20 | |
| VFD2A5MS11XNSXX | 0.5 | 0.4 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | ||
| VFD4A8MS11XNSXX | 1 | 0.75 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | ||
| 230V-單相 | VFD1A6MS21XNSXX VFD1A6MS21AFSAA | 0.3 | 0.2 | BR080W750*1 | RXLG-80W750RJ | 110*40*20 | |
| VFD2A8MS21XNSXX VFD2A8MS21AFSAA | 0.5 | 0.4 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | ||
| VFD4A8MS21XNSXX VFD4A8MS21AFSAA | 1.0 | 0.8 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | ||
| VFD7A5MS21XNSXX VFD7A5MS21AFSAA | 2.0 | 1.5 | BR200W091*1 | RXLG-200W91RJ | 215*40*20 | ||
| VFD11AMS21XNSXX VFD11AMS21AFSAA | 3.0 | 2.2 | BR300W070*1 | RXLG-300W70RJ | 215*60*30 | ||
| 230V-三相 | VFD1A6MS23XNSXX | 0.25 | 0.2 | BR080W750*1 | RXLG-80W750RJ | 110*40*20 | |
| VFD2A8MS23XNSXX | 0.5 | 0.4 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | ||
| VFD4A8MS23XNSXX | 1.0 | 0.75 | BR080W200*1 | RXLG-80W200RJ | 110*40*20 | ||
| VFD7A5MS23XNSXX | 2.0 | 1.5 | BR200W091*1 | RXLG-200W91RJ | 215*40*20 | ||
| VFD11AMS23XNSXX | 3.0 | 2.2 | BR300W070*1 | RXLG-300W70RJ | 215*60*30 | ||
| VFD17AMS23XNSXX | 5.0 | 3.7 | BR400W040*1 | RXLG-400W40RJ | 265*60*30 | ||
| VFD25AMS23XNSXX | 7.5 | 5.5 | BR1K0W020*1 | RXLG-1000W20RJ | 385*60*30 | ||
| VFD33AMS23XNSXX | 10.0 | 7.5 | BR1K0W020*1 | RXLG-1000W20RJ | 385*60*30 | ||
| VFD49AMS23XNSXX | 15.0 | 11.0 | BR1K5W013*1 | RXLG-1500W13RJ | 400*50*107 | ||
| VFD65AMS23XNSXX | 20.0 | 15.0 | BR1K0W4P3*2 | RXLG-1000W4.3RJ | 2串聯 | 385*60*30 | |
| 460V-三相 | VFD1A5MS43XNSXX VFD1A5MS43AFSAA | 0.5 | 0.4 | BR080W750*1 | RXLG-80W750RJ | 110*40*20 | |
| VFD2A7MS43XNSXX VFD2A7MS43AFSAA | 1.0 | 0.75 | BR080W750*1 | RXLG-80W750RJ | 110*40*20 | ||
| VFD4A2MS43XNSXX VFD4A2MS43AFSAA | 2.0 | 1.5 | BR200W360*1 | RXLG-200W360RJ | 215*40*20 | ||
| VFD5A5MS43XNSXX VFD5A5MS43AFSAA | 3.0 | 2.5 | BR300W250*1 | RXLG-300W250RJ | 215*60*30 | ||
| VFD9A0MS43XNSXX VFD9A0MS43AFSAA | 5.0 | 3.7 | BR400W150*1 | RXLG-400W150RJ | 265*60*30 | ||
| VFD13AMS43XNSXX VFD13AMS43AFSAA | 7.5 | 5.5 | BR1K0W075*1 | RXLG-1000W75RJ | 385*60*30 | ||
| VFD17AMS43XNSXX VFD17AMS43AFSAA | 10.0 | 7.5 | BR1K0W075*1 | RXLG-1000W75RJ | 385*60*30 | ||
| VFD25AMS43XNSXX VFD25AMS43AFSAA | 15 | 11 | BR1K5W043*1 | RXLG-1500W43RJ | 400*50*107 | ||
| VFD32AMS43XNSXX VFD32AMS43AFSAA | 20 | 15 | BR1K0W016*2 | RXLG-1000W16RJ | 2串聯 | 385*60*30 | |
| VFD38AMS43XNSXX VFD38AMS43AFSAA | 25 | 18 | BR1K0W016*2 | RXLG-1000W16RJ | 2串聯 | 385*60*30 | |
| VFD45AMS43XNSXX VFD45AMS43AFSAA | 30 | 22 | BR1K5W013*1 | RXLG-1500W13RJ | 2串聯 | 400*50*107 | |
臺達變頻器VFD-B剎車電阻選用一覽表
以下數據來源于臺達變頻器VFD-B官網
VFD007B23A
| 電壓 | 適用電機 | 全載輸出轉矩KG-M | 每臺等交流電機驅動器等效煞車電阻規格 | 制動單元 | 制動電阻料號 | 用量 | 制動轉矩10%ED% | 每臺交流電機驅動器等效小電阻值 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | ||
| HP | kW | 型式VFD B | 用量 | |||||||||
| 230V系列 | 1 | 0.75 | 0.427 | 80W200Ω | BR080W200 | 1 | 125 | 82Ω | RXLG-80W200RJ | 110*40*20 | ||
| 2 | 1.5 | 0.849 | 300W100Ω | BR300W100 | 1 | 125 | 82Ω | RXLG-300W100RJ | 215*60*30 | |||
| 3 | 2.2 | 1.262 | 300W100Ω | BR300W100 | 1 | 125 | 82Ω | RXLG-300W100RJ | 215*60*30 | |||
| 5 | 3.7 | 2.080 | 400W40Ω | BR400W040 | 1 | 125 | 33Ω | RXLG-400W40RJ | 265*60*30 | |||
| 7.5 | 5.5 | 3.111 | 500W30Ω | BR500W030 | 1 | 125 | 30Ω | RXLG-500W30RJ | 285*60*30 | |||
| 11 | 7.5 | 4.148 | 1000W20Ω | BR1K0W020 | 1 | 125 | 20Ω | RXLG-1000W20RJ | 385*60*30 | |||
| 15 | 11 | 6.186 | 2400W13.6Ω | BR1K2W6P8 | 2 | 125 | 13.6Ω | RXLG-2400W13R6 | 350*50*107 | |||
| 20 | 15 | 8.248 | 3000W10Ω | 2015 | 1 | BR1K5W005 | 2 | 125 | 10Ω | RXLG-3000W10RJ | 400*50*107 | |
| 25 | 18.5 | 10.281 | 4800W8Ω | 2022 | 1 | BR1K2W008 | 4 | 125 | 8Ω | RXLG-4800W8RJ | 350*50*107 | |
| 30 | 22 | 12.338 | 4800W6.8Ω | 2022 | 1 | BR1K2W6P8 | 4 | 125 | 6.8Ω | RXLG-4800W6R8 | 350*50*107 | |
| 40 | 30 | 16.497 | 6000W5Ω | 2015 | 2 | BR1K5W005 | 4 | 125 | 5Ω | RXLG-6000W5RJ | 400*50*107 | |
| 50 | 37 | 20.6 | 9600W4Ω | 2015 | 2 | BR1K2W008 | 8 | 125 | 4Ω | RXLG-9600W4RJ | 350*50*107 | |
| 460V系列 | 1 | 0.75 | 0.427 | 80W750Ω | BR080W750 | 1 | 125 | 160Ω | RXLG-80W750RJ | 110*40*20 | ||
| 2 | 1.5 | 0.849 | 300W400Ω | BR300W400 | 1 | 125 | 160Ω | RXLG-300W400RJ | 215*60*30 | |||
| 3 | 2.2 | 1.262 | 300W250Ω | BR300W250 | 1 | 125 | 160Ω | RXLG-300W250RJ | 215*60*30 | |||
| 5 | 3.7 | 2.080 | 400W150Ω | BR400W150 | 1 | 125 | 130Ω | RXLG-400W150RJ | 265*60*30 | |||
| 7.5 | 5.5 | 3.111 | 500W100Ω | BR500W100 | 1 | 125 | 91Ω | RXLG-500W100RJ | 285*60*30 | |||
| 10 | 7.5 | 4.148 | 1000W75Ω | BR1K0W075 | 1 | 125 | 62Ω | RXLG-1000W75RJ | 385*60*30 | |||
| 15 | 11 | 6.186 | 1000W50Ω | BR1K0W050 | 1 | 125 | 39Ω | RXLG-1000W50RJ | 385*60*30 | |||
| 20 | 15 | 8.248 | 1500W40Ω | 4030 | 1 | BR1K5W040 | 1 | 125 | 40Ω | RXLG-1500W40RJ | 400*50*107 | |
| 25 | 18.5 | 10.281 | 4800W32Ω | 4030 | 1 | BR1K2W008 | 4 | 125 | 32Ω | RXLG-4800W32RJ | 350*50*107 | |
| 30 | 22 | 12.338 | 4800W27.2Ω | 4030 | 1 | BR1K2W6P8 | 4 | 125 | 27.2Ω | RXLG-4800W27R2 | 350*50*107 | |
| 40 | 30 | 16.497 | 6000W20Ω | 4030 | 1 | BR1K5W005 | 4 | 125 | 20Ω | RXLG-6000W20RJ | 400*50*107 | |
| 50 | 37 | 20.6 | 9600W16Ω | 4045 | 1 | BR1K2W008 | 8 | 125 | 16Ω | RXLG-9600W16RJ | 350*50*107 | |
| 60 | 45 | 24.745 | 9600W13.6Ω | 4045 | 1 | BR1K2W6P8 | 8 | 125 | 13.6Ω | RXLG-9600W13R6 | 350*50*107 | |
| 75 | 55 | 31.11 | 12000W10Ω | 4030 | 2 | BR1K5W005 | 8 | 125 | 10Ω | RXLG-12000W10RJ | 400*50*107 | |
| 100 | 75 | 42.7 | 19200W6.8Ω | 4045 | 2 | BR1K2W6P8 | 16 | 125 | 6.8Ω | RXLG-19200W6R8 | 350*50*107 | |
| 575V系列 | 1 | 0.75 | 0.427 | 300W400Ω | BR300W400 | 1 | 200Ω | RXLG-300W400RJ | 215*60*30 | |||
| 2 | 1.5 | 0.849 | 300W250Ω | BR300W250 | 1 | 200Ω | RXLG-300W250RJ | 215*60*30 | ||||
| 3 | 2.2 | 1.262 | 400W150Ω | BR400W150 | 1 | 130Ω | RXLG-400W150RJ | 265*60*30 | ||||
| 5 | 3.7 | 2.080 | 400W150Ω | BR400W150 | 1 | 130Ω | RXLG-400W150RJ | 265*60*30 | ||||
| 7.5 | 5.5 | 3.111 | 500W100Ω | BR500W100 | 1 | 82Ω | RXLG-500W100RJ | 385*60*30 | ||||
| 10 | 7.5 | 4.148 | 500W100Ω | BR500W100 | 1 | 82Ω | RXLG-500W100RJ | 385*60*30 | ||||
| 15 | 11 | 6.186 | 500W100Ω | BR500W100 | 1 | 82Ω | RXLG-500W100RJ | 385*60*30 | ||||
| 20 | 15 | 8.248 | 3000W60Ω | 5055 | 1 | BR1K0W020 | 3 | 125 | 60Ω | RXLG-3000W60RJ | 385*60*30 | |
| 25 | 18.5 | 10.281 | 4000W50Ω | 5055 | 1 | BR1K0W050 | 4 | 125 | 50Ω | RXLG-4000W50RJ | 385*60*30 | |
| 30 | 22 | 12.338 | 6000W40Ω | 5055 | 1 | BR1K2W008 | 5 | 125 | 40Ω | RXLG-6000W40RJ | 350*50*107 | |
| 40 | 30 | 16.497 | 6000W34Ω | 5055 | 1 | BR1K2W6P8 | 5 | 125 | 34Ω | RXLG-6000W34RJ | 350*50*107 | |
| 50 | 37 | 20.6 | 7500W25Ω | 5055 | 1 | BR1K5W005 | 5 | 125 | 25Ω | RXLG-7500W25RJ | 400*50*107 | |
| 60 | 45 | 24.745 | 12000W20Ω | 5055 | 1 | BR1K2W008 | 10 | 125 | 20Ω | RXLG-12000W20RJ | 350*50*107 | |
| 75 | 55 | 31.11 | 12000W17Ω | 5055 | 1 | BR1K2W6P8 | 10 | 125 | 17Ω | RXLG-12000W17RJ | 350*50*107 | |
| 100 | 75 | 42.7 | 15000W12.5Ω | 5055 | 2 | BR1K5W005 | 10 | 125 | 12.5Ω | RXLG-15000W12R5 | 400*50*107 | |
臺達變頻器VFD-E剎車電阻選用一覽表
以下數據來源于臺達變頻器VFD-E官網
VFD007E23A
| 110V系列 | 適用馬達HP[kW] | 機種 | 125%制動能力/10%ED | [敏感詞]制動轉矩限制** | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | |||||||||
| 全載輸出轉矩KG-M★★ | 制動單元 | 每臺交流馬達驅動器等效煞車電阻規格 | 制動單元對應之制動電阻 | 煞車電流(A) | 小電阻限制(Ω) | [敏感詞]煞車電流限制(A) | [敏感詞]峰值功率(kW) | ||||||||
| BUE | 用量 | ||||||||||||||
| 料號 | 用量 | 用法 | |||||||||||||
| 0.25[0.2] |
VFD002E11A VFD002E11C VFD002E11P |
0.14 | 20015 | 1 | 80W200Ω | BR080W200 | 1 | - | 1.9 | 105.6 | 3.6 | 1.4 | RXLG-80W200RJ | 110*40*20 | |
| VFD002E11T | |||||||||||||||
| 0.5[0.4] |
VFD004E11A VFD004E11C VFD004E11P |
0.27 | 20015 | 1 | 80W200Ω | BR080W200 | 1 | - | 1.9 | 105.6 | 3.6 | 1.4 | RXLG-80W200RJ | 110*40*20 | |
| VFD004E11T | |||||||||||||||
| [0.75] |
VFD007E11A VFD007E11C VFD007E11P |
0.51 | 80W200Ω | BR080W200 | 1 | - | 1.9 | 105.6 | 3.6 | 1.4 | RXLG-80W200RJ | 110*40*20 | |||
| 230V系列 | 0.25[0.2] |
VFD002E21A VFD002E21C VFD002E21P VFD002E23A VFD002E23C VFD002E23P |
0.14 | 20015 | 1 | 80W200Ω | BR080W200 | 1 | - | 1.9 | 105.6 | 3.6 | 1.4 | RXLG-80W200RJ | 110*40*20 |
|
VFD002E21T VFD002E23T |
|||||||||||||||
| 0.5[0.4] |
VFD004E21A VFD004E21C VFD004E21P VFD004E23A VFD004E23C VFD004E23P |
0.27 | 20015 | 1 | 80W200Ω | BR080W200 | 1 | - | 1.9 | 105.6 | 3.6 | 1.4 | RXLG-80W200RJ | 110*40*20 | |
|
VFD004E21T VFD004E23T |
|||||||||||||||
| [0.75] |
VFD007E21A VFD007E21C VFD007E21P VFD007E23A VFD007E23C VFD007E23P |
0.51 | 20015 | 1 | 80W200Ω | BR080W200 | 1 | - | 1.9 | 105.6 | 3.6 | 1.4 | RXLG-80W200RJ | 110*40*20 | |
|
VFD007E21T VFD007E23T |
|||||||||||||||
| 2[1.5] |
VFD015E21A VFD015E21C VFD015E23T |
1.02 | 300W110Ω | BR300W110 | - | - | 3.5 | 105.6 | 3.6 | 1.4 | RXLG-300W110RJ | 215*60*30 | |||
|
VFD015E23A VFD015E23C VFD015E23P |
20015 | 1 | |||||||||||||
| 3[2.2] |
VFD022E21A VFD022E21C VFD022E23A VFD022E23C |
1.49 | 300W110Ω | BR300W110 | - | - | 3.5 | 105.6 | 3.6 | 1.4 | RXLG-300W110RJ | 215*60*30 | |||
| 5[3.7] |
VFD037E23A VFD037E23C |
2.50 | 600W50Ω | BR300W025 | 2 | 2串聯 | 7.6 | 47.5 | 8 | 3.0 | RXLG-600W50RJ | 300*60*30 | |||
| 7.5[5.5] |
VFD055E23A VFD055E23C |
3.72 | 750W33Ω | BR750W033 | 1 | - | 15.2 | 25.3 | 15 | 5.7 | RXLG-750W33RJ | ||||
| 10[7.5] |
VFD075E23A VFD075E23C |
5.08 | 1000W20Ω | BR1K0W020 | 1 | 20.7 | 16.5 | 23 | 8.7 | RXLG-1000W20RJ | 385*60*30 | ||||
| 15[11] |
VFD110E23A VFD110E23C |
7.45 | 1500W13Ω | BR1K5W013 | 1 | - | 30.3 | 11.5 | 33 | 12.5 | RXLG-1500W13RJ | 400*50*107 | |||
| 20[15] |
VFD150E23A VFD150E23C |
10.16 | 2000W10Ω | BR1K0W020 | 2 | 2并聯 | 41.5 | 7.6 | 50 | 19.0 | RXLG-2000W10RJ | 450*50*107 | |||
| 460V系列 | 0.5[0.4] |
VFD004E43A VFD004E43C VFD004E43P |
0.27 | 40015 | 1 | 80W750Ω | BR080W750 | 1 | - | 1.1 | 422.2 | 1.8 | 1.4 | RXLG-80W750RJ | 110*40*20 |
| VFD004E43T | 126.7 | 6 | 4.6 | ||||||||||||
| 1[0.75] |
VFD007E43A VFD007E43C VFD007E43P |
0.51 | 40015 | 1 | 80W750Ω | BR080W750 | 1 | - | 1.1 | 422.2 | 1.8 | 1.4 | RXLG-80W750RJ | 110*40*20 | |
| VFD007E43T | 126.7 | 6 | 4.6 | ||||||||||||
| 2[1.5] |
VFD015E43A VFD015E43C VFD015E43P |
1.02 | 40037 | 1 | 200W360Ω | BR200W360 | 1 | - | 2.2 | 95.0 | 8 | 6.1 | RXLG-200W360RJ | 215*40*20 | |
| VFD015E43T | 126.7 | 6 | 4.6 | ||||||||||||
| 3[2.2] |
VFD022E43A VFD022E43C |
1.49 | 300W250Ω | BR300W250 | 1 | - | 3.2 | 84.4 | 9 | 6.8 | RXLG-300W250RJ | 215*60*30 | |||
| 5[3.7] |
VFD037E43A VFD037E43C |
2.50 | 600W140Ω | BR300W070 | 2 | 2串聯 | 5.4 | 84.4 | 9 | 6.8 | RXLG-600W140RJ | 300*60*30 | |||
| 7.5[5.5] |
VFD055E43A VFD055E43C |
3.72 | 1000W75Ω | BR1K0W075 | 1 | - | 10.4 | 63.3 | 12 | 9.1 | RXLG-1000W75RJ | 385*60*30 | |||
| 10[7.5] |
VFD075E43A VFD075E43C |
5.08 | 1000W75Ω | BR1K0W075 | 1 | - | 10.4 | 42.2 | 18 | 13.7 | RXLG-1000W75RJ | 385*60*30 | |||
| 15[11] |
VFD110E43A VFD110E43C |
7.45 | 1500W43Ω | BR1K5W043 | 1 | - | 17.7 | 42.2 | 18 | 13.7 | RXLG-1500W43RJ | 400*50*107 | |||
| 20[15] |
VFD150E43A VFD150E43C |
10.16 | 2000W40Ω | BR1K0W020 | 2 | 2串聯 | 20.7 | 21.1 | 36 | 27.4 | RXLG-2000W40RJ | 385*60*30 | |||
| 25[18.5] |
VFD185E43A VFD185E43C |
12.52 | 2400W30Ω | BR1K2W015 | 2 | 2串聯 | 25.5 | 17.7 | 43 | 32.7 | RXLG-2400W30RJ | 350*50*107 | |||
| 30[22] |
VFD220E43A VFD220E43C |
14.89 | 3000W26Ω | BR1K5W013 | 2 | 2串聯 | 25.5 | 17.7 | 43 | 32.7 | RXLG-3000W26RJ | 400*50*107 | |||
臺達變頻器VFD-EL剎車電阻選用一覽表
以下數據來源于臺達變頻器VFD-EL官網
VFD007EL23A
| 電壓 | 適用馬達 | 全載輸出轉矩KG-M | 每臺等交流馬達驅動器等效煞車電阻規格 | 制動單元型式VFD B | 煞車電阻料號 | 用量 | 煞車轉矩10%ED% | 每臺交流馬達驅動器等效小電阻值 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | |
| HP | kW | ||||||||||
| 115V系列 | 0.25 | 0.2 | 0.110 | 80W200Ω | BUE20015 | BR080W200 | 1 | 320 | 105.6Ω | RXLG-80W200RJ | 110*40*20 |
| 0.5 | 0.4 | 0.216 | 80W200Ω | BUE20015 | BR080W200 | 1 | 170 | 105.6Ω | RXLG-80W200RJ | 110*40*20 | |
| 1 | 0.75 | 0.427 | 80W200Ω | BUE20015 | BR080W200 | 1 | 140 | 105.6Ω | RXLG-80W200RJ | 110*40*20 | |
|
230V 系列 |
0.5 | 0.4 | 0.216 | 80W200Ω | BUE20015 | BR080W200 | 1 | 170 | 105.6Ω | RXLG-80W200RJ | 110*40*20 |
| 1 | 0.75 | 0.427 | 80W200Ω | BUE20015 | BR080W200 | 1 | 140 | 105.6Ω | RXLG-80W200RJ | 110*40*20 | |
| 2 | 1.5 | 0.849 | 300W110Ω | BUE20015 | BR300W110 | 1 | 107 | 105.6Ω | RXLG-300W110RJ | 215*60*30 | |
| 3 | 2.2 | 1.262 | 300W110Ω | BUE20015 | BR300W110 | 1 | 150 | 105.6Ω | RXLG-300W110RJ | 215*60*30 | |
| 5 | 3.7 | 2.080 | 600W50Ω | BUE20037 | BR300W025 | 2串聯 | 150 | 47.5Ω | RXLG-600W50RJ | 300*60*30 | |
|
460V 系列 |
0.5 | 0.4 | 0.216 | 80W750Ω | BUE40015 | BR080W750 | 1 | 400 | 422Ω | RXLG-80W750RJ | 110*40*20 |
| 1 | 0.75 | 0.427 | 80W750Ω | BUE40015 | BR080W750 | 1 | 200 | 422Ω | RXLG-80W750RJ | 110*40*20 | |
| 2 | 1.5 | 0.849 | 200W360Ω | BUE40037 | BR200W360 | 1 | 140 | 95Ω | RXLG-200W360RJ | 215*40*20 | |
| 3 | 2.2 | 1.262 | 300W250Ω | BUE40037 | BR300W250 | 1 | 150 | 84.4Ω | RXLG-300W250RJ | 215*60*30 | |
| 5 | 3.7 | 2.080 | 600W140Ω | BUE40037 | BR300W070 | 1 | 150 | 84.4Ω | RXLG-600W140RJ | 300*60*30 | |
臺達變頻器VFD-F剎車電阻選用一覽表
以下數據來源于臺達變頻器VFD-F官網
VFD055F43A
| 電壓 | 適用電機 | 全載輸出轉矩KG-M | 每臺變頻器等效剎車電阻規格 | 制動單元 | 制動電阻料號 | 用量 | 制動轉矩10%ED% | 每臺變頻器等效小電阻值 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | ||
| HP | kW | 型式VFD B | 用量 | |||||||||
| 230V系列 | 1 | 0.75 | 0.427 | 80W200Ω | BR080W200 | 1 | 125 | 80Ω | RXLG-80W200RJ | 110*40*20 | ||
| 2 | 1.5 | 0.849 | 300W100Ω | BR300W100 | 1 | 125 | 55Ω | RXLG-300W100RJ | 215*60*30 | |||
| 3 | 2.2 | 1.262 | 300W70Ω | BR300W070 | 1 | 125 | 35Ω | RXLG-300W70RJ | 215*60*30 | |||
| 5 | 3.7 | 2.080 | 400W40Ω | BR400W040 | 1 | 125 | 25Ω | RXLG-400W40RJ | 265*60*30 | |||
| 7.5 | 5.5 | 3.111 | 500W30Ω | BR500W030 | 1 | 125 | 16Ω | RXLG-500W30RJ | 285*60*30 | |||
| 10 | 7.5 | 4.148 | 1000W20Ω | BR1K0W020 | 1 | 125 | 12Ω | RXLG-1000W20RJ | 385*60*30 | |||
| 15 | 11 | 6.186 | 2400W13.6Ω | BR1K2W6P8 | 2 | 125 | 13.6Ω | RXLG-2400W13.6RJ | 350*50*107 | |||
| 20 | 15 | 8.248 | 3000W10Ω | 2015 | 1 | BR1K5W005 | 2 | 125 | 10Ω | RXLG-3000W10RJ | 400*50*107 | |
| 25 | 18.5 | 10.281 | 4800W8Ω | 2022 | 1 | BR1K2W008 | 4 | 125 | 8Ω | RXLG-4800W8RJ | 350*50*107 | |
| 30 | 22 | 12.338 | 4800W6.8Ω | 2022 | 1 | BR1K2W6P8 | 4 | 125 | 6.8Ω | RXLG-4800W6R8 | 350*50*107 | |
| 40 | 30 | 16.497 | 6000W5Ω | 2015 | 2 | BR1K5W005 | 4 | 125 | 5Ω | RXLG-6000W5RJ | 400*60*30 | |
| 50 | 37 | 20.6 | 9600W4Ω | 2015 | 2 | BR1K2W008 | 8 | 125 | 4Ω | RXLG-9600W4RJ | 350*50*107 | |
| 460V系列 | 1 | 0.75 | 0.427 | 80W750Ω | BR080W750 | 1 | 125 | 160Ω | RXLG-80W750RJ | 110*40*20 | ||
| 2 | 1.5 | 0.849 | 300W400Ω | BR300W400 | 1 | 125 | 160Ω | RXLG-300W400RJ | 215*60*30 | |||
| 3 | 2.2 | 1.262 | 300W250Ω | BR300W250 | 1 | 125 | 160Ω | RXLG-300W250RJ | 215*60*30 | |||
| 5 | 3.7 | 2.080 | 400W150Ω | BR400W150 | 1 | 125 | 130Ω | RXLG-400W150RJ | 265*60*30 | |||
| 7.5 | 5.5 | 3.111 | 500W100Ω | BR500W100 | 1 | 125 | 60Ω | RXLG-500W100RJ | 285*60*30 | |||
| 10 | 7.5 | 4.148 | 1000W75Ω | BR1K0W075 | 1 | 125 | 45Ω | RXLG-1000W75RJ | 385*60*30 | |||
| 15 | 11 | 6.186 | 1000W50Ω | BR1K0W050 | 1 | 125 | 50Ω | RXLG-1000W50RJ | 385*60*30 | |||
| 20 | 15 | 8.248 | 1500W40Ω | BR1K5W040 | 1 | 125 | 40Ω | RXLG-1500W40RJ | 400*50*107 | |||
| 25 | 18.5 | 10.281 | 4800W32Ω | 4030 | 1 | BR1K2W008 | 4 | 125 | 32Ω | RXLG-4800W32RJ | 350*50*107 | |
| 30 | 22 | 12.338 | 4800W27.2Ω | 4030 | 1 | BR1K2W6P8 | 4 | 125 | 27.2Ω | RXLG-4800W27R2 | 350*50*107 | |
| 40 | 30 | 16.497 | 6000W20Ω | 4030 | 1 | BR1K5W005 | 4 | 125 | 20Ω | RXLG-6000W20RJ | 400*60*30 | |
| 50 | 37 | 20.6 | 9600W16Ω | 4045 | 1 | BR1K2W008 | 8 | 125 | 16Ω | RXLG-9600W16RJ | 350*50*107 | |
| 60 | 45 | 24.745 | 9600W13.6Ω | 4045 | 1 | BR1K2W6P8 | 8 | 125 | 13.6Ω | RXLG-9600W13R6 | 350*50*107 | |
| 75 | 55 | 31.11 | 12000W10Ω | 4030 | 2 | BR1K5W005 | 8 | 125 | 10Ω | RXLG-12000W10RJ | 400*50*107 | |
| 100 | 75 | 42.7 | 19200W6.8Ω | 4045 | 2 | BR1K2W6P8 | 16 | 125 | 6.8Ω | RXLG-19200W6R8 | 350*50*107 | |
| 120 | 90 | 52.5 | 13500W5Ω | 4132 | 1 | BR1K5W005 | 9 | 120 | 5Ω | RXLG-13500W5RJ | 400*50*107 | |
| 150 | 110 | 61 | 21600W4Ω | 4132 | 1 | BR1K2W008 | 18 | 120 | 4Ω | RXLG-21600W4RJ | 350*50*107 | |
| 175 | 132 | 73.5 | 21600W4Ω | 4132 | 1 | BR1K2W008 | 18 | 100 | 4Ω | RXLG-21600W4RJ | 350*50*107 | |
| 215 | 160 | 89 | 21600W3.4Ω | 4132 | 1 | BR1K2W6P8 | 18 | 97 | 3.4Ω | RXLG-21600W3R4 | 350*50*107 | |
| 250 | 185 | 103 | 27000W2.5Ω | 4132 | 2 | BR1K5W005 | 18 | 115 | 2.5Ω | RXLG-27000W2R5 | 400*50*107 | |
| 300 | 220 | 122.5 | 27000W2.5Ω | 4132 | 2 | BR1K5W005 | 18 | 96 | 2.5Ω | RXLG-27000W2R5 | 400*50*107 | |
臺達變頻器VFD-G剎車電阻選用一覽表
以下數據來源于臺達變頻器VFD-G官網
VFD075F43A - G
| 電壓 | 適用電機 | 輸出轉費*1全載矩KG-M | 每臺變頻器等效煞車電阻規格 | 制動單元 | 制動電阻料號 | 量用 | 制動轉矩10%ED% | 每臺變頻器等效小電阻值 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | ||
| HP | kW | 型式VFD B | 用量 | |||||||||
| 460V系列 | 7.5 | 5.5 | 3.111 | 500W100Ω | BR500W100 | 1 | 125 | 60Ω | RXLG-500W100RJ | 285*60*30 | ||
| 10 | 7.5 | 4.148 | 1000W75Ω | BR1K0W075 | 1 | 125 | 45Ω | RXLG-1000W75RJ | 385*60*30 | |||
| 15 | 11 | 6.186 | 1000W50Ω | BR1K0W050 | 1 | 125 | 50Ω | RXLG-1000W50RJ | 385*60*30 | |||
| 20 | 15 | 8.248 | 1500W40Ω | BR1K5W040 | 1 | 125 | 40Ω | RXLG-1500W40RJ | 400*50*107 | |||
| 25 | 18.5 | 10.281 | 4800W32Ω | 4030 | 1 | BR1K2W008 | 4 | 125 | 32Ω | RXLG-4800W32RJ | 350*50*107 | |
| 30 | 22 | 12.338 | 4800W27.2Ω | 4030 | 1 | BR1K2W6P8 | 4 | 125 | 27.2Ω | RXLG-4800W27R2 | 350*50*107 | |
| 40 | 30 | 16.497 | 6000W20Ω | 4030 | 1 | BR1K5W005 | 4 | 125 | 20Ω | RXLG-6000W20RJ | 400*50*107 | |
| 50 | 37 | 20.6 | 9600W16Ω | 4045 | 1 | BR1K2W008 | 8 | 125 | 16Ω | RXLG-9600W16RJ | 350*50*107 | |
| 60 | 45 | 24.745 | 9600W13.6Ω | 4045 | 1 | BR1K2W6P8 | 8 | 125 | 13.6Ω | RXLG-9600W13R6 | 350*50*107 | |
| 75 | 55 | 31.11 | 12000W10Ω | 4030 | 2 | BR1K5W005 | 8 | 125 | 10Ω | RXLG-12000W10RJ | 400*50*107 | |
| 100 | 75 | 42.7 | 19200W6.8Ω | 4045 | 2 | BR1K2W6P8 | 16 | 125 | 6.8Ω | RXLG-19200W6R8 | 350*50*107 | |
臺達變頻器VFD-M剎車電阻選用一覽表
以下數據來源于臺達變頻器VFD-M官網
VFD007M23A
| 電壓 | 適用電機 | 全載輸出轉矩KG-M | 每臺等交流電機驅動器等效剎車電阻規格 | 制動單元型式VFD B | 制動電阻料號 | 用量 | 制動轉矩10%ED% | 每臺交流電機驅動器等效小電阻值 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | |
| HP(4極) | kW | ||||||||||
| 115V系列 | 1/4 | 0.2 | 0.110 | 80W200Ω | - | BR080W200 | 1 | 400 | 80Ω | RXLG-80W200RJ | 110*40*20 |
| 1/2 | 0.4 | 0.216 | 80W200Ω | - | BR080W200 | 1 | 220 | 80Ω | RXLG-80W200RJ | 110*40*20 | |
| 1 | 0.75 | 0.427 | 80W200Ω | - | BR080W200 | 1 | 125 | 80Ω | RXLG-80W200RJ | 110*40*20 | |
|
230V系列 |
1/2 | 0.4 | 0.216 | 80W200Ω | - | BR080W200 | 1 | 220 | 200Ω | RXLG-80W200RJ | 110*40*20 |
| 1 | 0.75 | 0.427 | 80W200Ω | - | BR080W200 | 1 | 125 | 80Ω | RXLG-80W200RJ | 110*40*20 | |
| 2 | 1.5 | 0.849 | 300W100Ω | - | BR300W100 | 1 | 125 | 55Ω | RXLG-300W100RJ | 215*60*30 | |
| 3 | 2.2 | 1.262 | 300W70Ω | - | BR300W070 | 1 | 125 | 35Ω | RXLG-300W70RJ | 215*60*30 | |
| 5 | 3.7 | 2.080 | 400W40Ω | - | BR400W040 | 1 | 125 | 25Ω | RXLG-400W40RJ | 265*60*30 | |
| 7.5 | 5.5 | 3.111 | 500W30Ω | - | BR500W030 | 1 | 125 | 16Ω | RXLG-500W30RJ | 285*60*30 | |
|
460V系列 |
1 | 0.75 | 0.427 | 80W750Ω | - | BR080W750 | 1 | 125 | 260Ω | RXLG-80W750RJ | 110*40*20 |
| 2 | 1.5 | 0.849 | 300W400Ω | - | BR300W400 | 1 | 125 | 190Ω | RXLG-300W400RJ | 215*60*30 | |
| 3 | 2.2 | 1.262 | 300W250Ω | - | BR300W250 | 1 | 125 | 145Ω | RXLG-300W250RJ | 215*60*30 | |
| 5 | 3.7 | 2.080 | 400W150Ω | - | BR400W150 | 1 | 125 | 95Ω | RXLG-400W150RJ | 265*60*30 | |
| 7.5 | 5.5 | 3.111 | 500W100Ω | - | BR500W100 | 1 | 125 | 60Ω | RXLG-500W100RJ | 285*60*30 | |
| 10 | 7.5 | 4.148 | 1000W75Ω | - | BR1K0W075 | 1 | 125 | 45Ω | RXLG-1000W75RJ | 385*60*30 | |
|
575V系列 |
1 | 0.75 | 0.427 | 300W400Ω | - | BR300W400 | 1 | 125 | 200Ω | RXLG-300W400RJ | 215*60*30 |
| 2 | 1.5 | 0.849 | 300W400Ω | - | BR300W400 | 1 | 125 | 200Ω | RXLG-300W400RJ | 215*60*30 | |
| 3 | 2.2 | 1.262 | 600W200Ω | - | BR300W400 | 2 | 125 | 150Ω | RXLG-600W200RJ | 300*60*30 | |
| 5 | 3.7 | 2.080 | 600W200Ω | - | BR300W400 | 2 | 125 | 150Ω | RXLG-600W200RJ | 300*60*30 | |
| 7.5 | 5.5 | 3.111 | 600W200Ω | - | BR300W400 | 2 | 125 | 150Ω | RXLG-600W200RJ | 300*60*30 | |
| 10 | 7.5 | 4.148 | 2000W100Ω | - | BR1000W50 | 2 | 125 | 82Ω | RXLG-2000W100RJ | 450*50*107 | |
臺達變頻器VFD-S剎車電阻選用一覽表
以下數據來源于臺達變頻器VFD-S官網
VFD007S23A
| 電壓 | 適用電機 | 全載輸出轉矩KG-M | 每臺等交流電機驅動器等效剎車電阻規格 | 制動電阻料號 | 用量 | 制動轉矩10%ED% | 每臺交流電機驅動器等效小電阻值 | 臺旺佳料號 | 尺寸：長*寬*高(L*B*H)mm | |
| HP | kW | |||||||||
| 115V/230V系列 | 1/4 | 0.2 | 0.110 | 80W200Ω | BR080W200 | 1 | 400 | 120Ω | RXLG-80W200RJ | 110*40*20 |
| 1/2 | 0.4 | 0.216 | 80W200Ω | BR080W200 | 1 | 220 | 120Ω | RXLG-80W200RJ | 110*40*20 | |
| 1 | 0.75 | 0.427 | 80W200Ω | BR080W200 | 1 | 125 | 80Ω | RXLG-80W200RJ | 110*40*20 | |
| 2 | 1.5 | 0.849 | 300W100Ω | BR300W100 | 1 | 125 | 55Ω | RXLG-300W100RJ | 215*60*30 | |
| 3 | 2.2 | 1.262 | 300W70Ω | BR300W70 | 1 | 125 | 35Ω | RXLG-300W70RJ | 215*60*30 | |
| 460V系列 | 1/2 | 0.4 | 0.216 | 80W750Ω | BR080W750 | 1 | 230 | 470Ω | RXLG-80W750RJ | 110*40*20 |
| 1 | 0.75 | 0.427 | 80W750Ω | BR080W750 | 1 | 125 | 260Ω | RXLG-80W750RJ | 110*40*20 | |
| 2 | 1.5 | 0.849 | 300W400Ω | BR300W400 | 1 | 125 | 190Ω | RXLG-300W400RJ | 215*60*30 | |
| 3 | 2.2 | 1.262 | 300W250Ω | BR300W250 | 1 | 125 | 145Ω | RXLG-300W250RJ | 215*60*30 | |

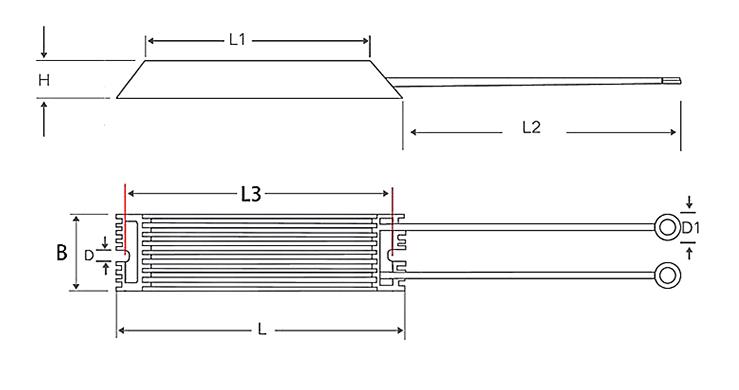

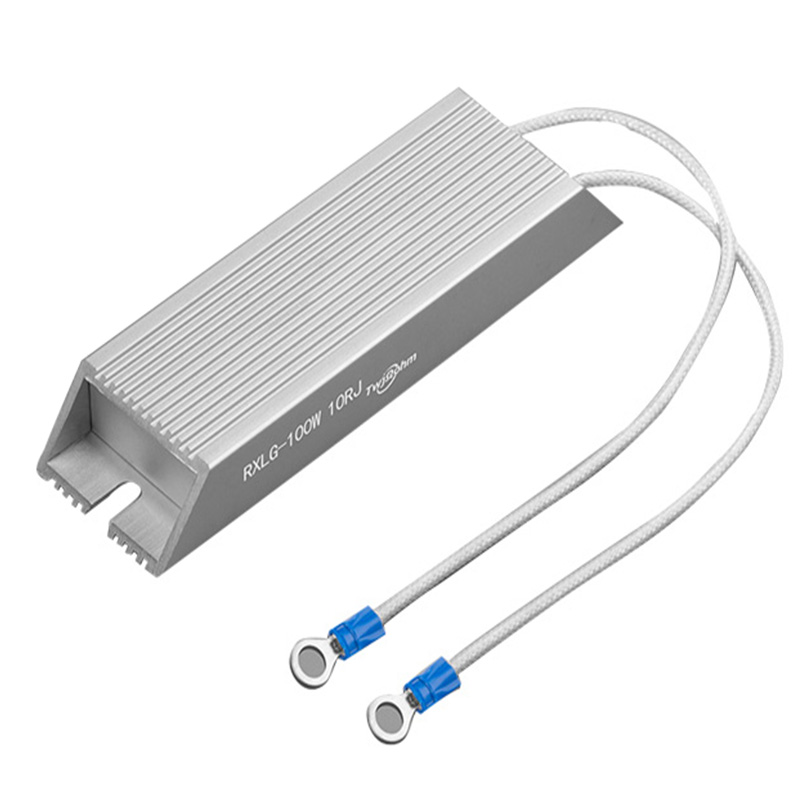

| 功率型號 | 安裝孔徑D | 安裝孔距L3 | 接線孔徑D1 | 外露線長L2 | 配線平方 |
| RX LG-80W | 5.5 | 95 | 300 | 1.5 | |
| RX LG-200W | 5.5 | 200 | 300 | 2.5 | |
| RX LG-300W | 5.5 | 200 | 300 | 2.5 | |
| RX LG-400W | 5.5 | 250 | 300 | 2.5 | |
| RX LG-500W | 5.5 | 270 | 300 | 2.5 | |
| RX LG-600W | 5.5 | 285 | 300 | 2.5 | |
| RX LG-800W | 5.5 | 315 | 300 | 2.5 | |
| RX LG-1000W | 5.5 | 370 | 300 | 2.5 | |
| RX LG-1200W | 6.5 | 335 | 300 | 2.5 | |
| RX LG-1500W | 6.5 | 385 | 300 | 2.5 | |
| RX LG-2000W | 6.5 | 435 | 300 | 2.5 | |
| RX LG-2500W | 6.5 | 470 | 300 | 2.5 | |
| RX LG-3000W | 6.5 | 535 | 300 | 2.5 | |
| RX LG-4000W | 6.5 | 635 | 300 | 2.5 | |
| RX LG-4500W | 6.5 | 685 | 300 | 2.5 | |
| RX LG-5000W | 6.5 | 735 | 300 | 2.5 | |
| RX LG-6000W | 6.5 | 835 | 300 | 2.5 | |
| RX LG-8000W | 6.5 | 885 | 300 | 2.5 | |
| RX LG-10000W | 6.5 | 985 | 300 | 2.5 |
